With power unplugged

Replace drum(s) the close cover

To get to SP mode

Remove cover from the right side of the LED screen

A white device on a black surface Description automatically generated

Press the round button closest to you and press the check status button at the same time

Close-up of a check status screen Description automatically generated

This screen pops up

A screen with a black and white screen Description automatically generated with medium confidence

Press reset (top left) then enter 806182 C (key presses make no noise and no indication that any button was pressed)

Hold C until new screen appears

Press system sp

This next windows pops up

A close-up of a screen Description automatically generated



Use the down arrows to go to system sp-7XXX

Scroll to PM counter reset sp-7804 select

A close-up of a printer Description automatically generated

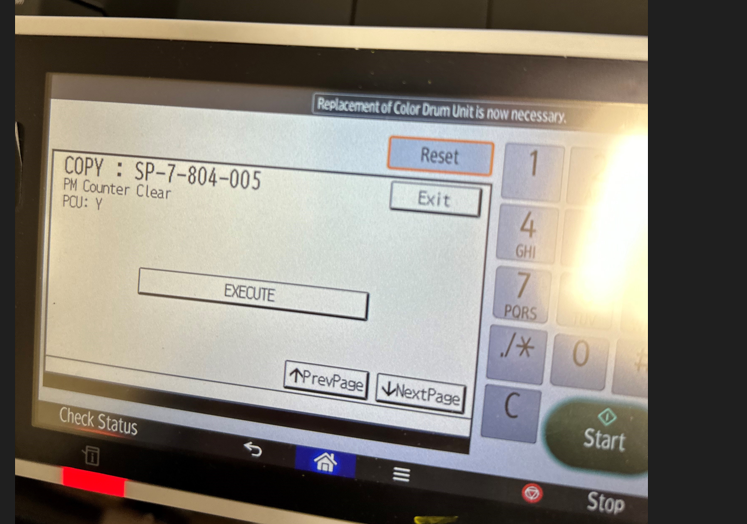

Select the color you want to reset the counter for then click execute

A screen shot of a computer Description automatically generated

Do this for each color

PCU – blk (black)

PCU – C (cyan)

PCU – M (magenta)

PCU – Y (yellow)
